Total Phosphorous (TP) Analyzer Liquiline System

COD Analyzer Liquiline System

Product Information

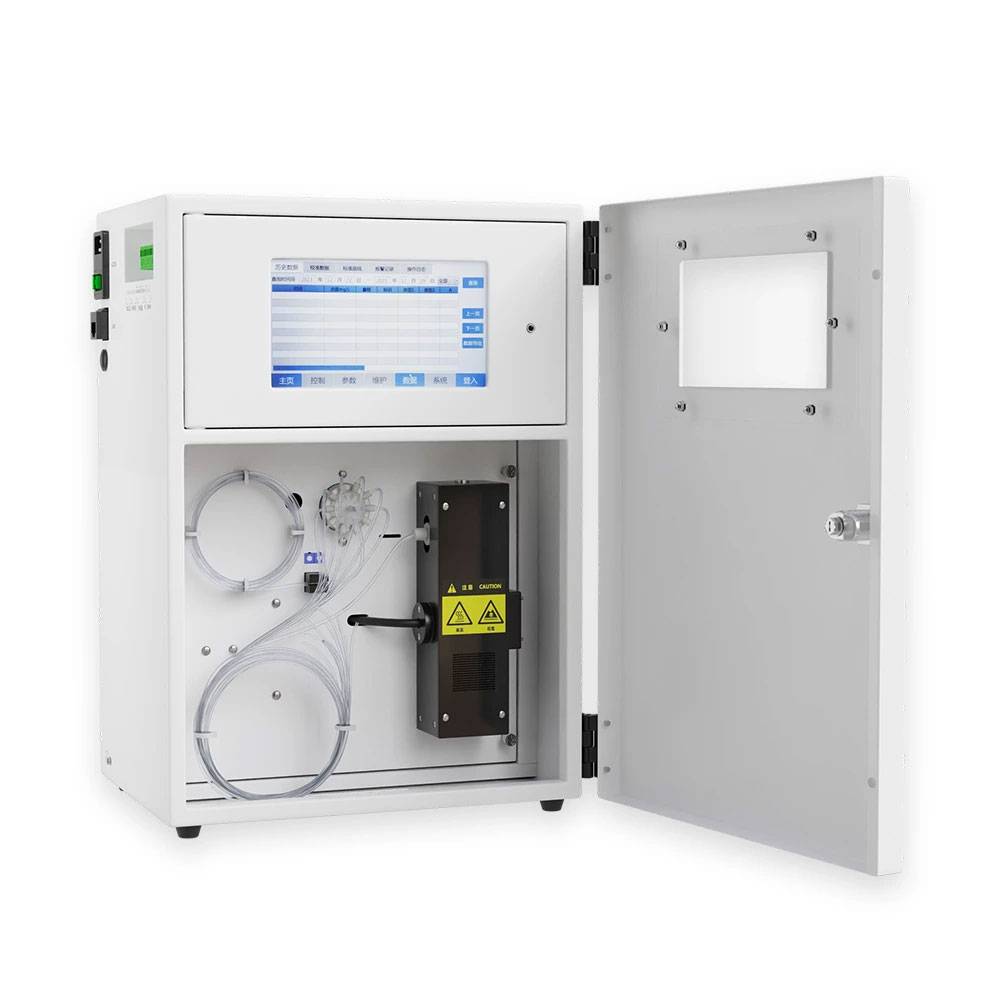

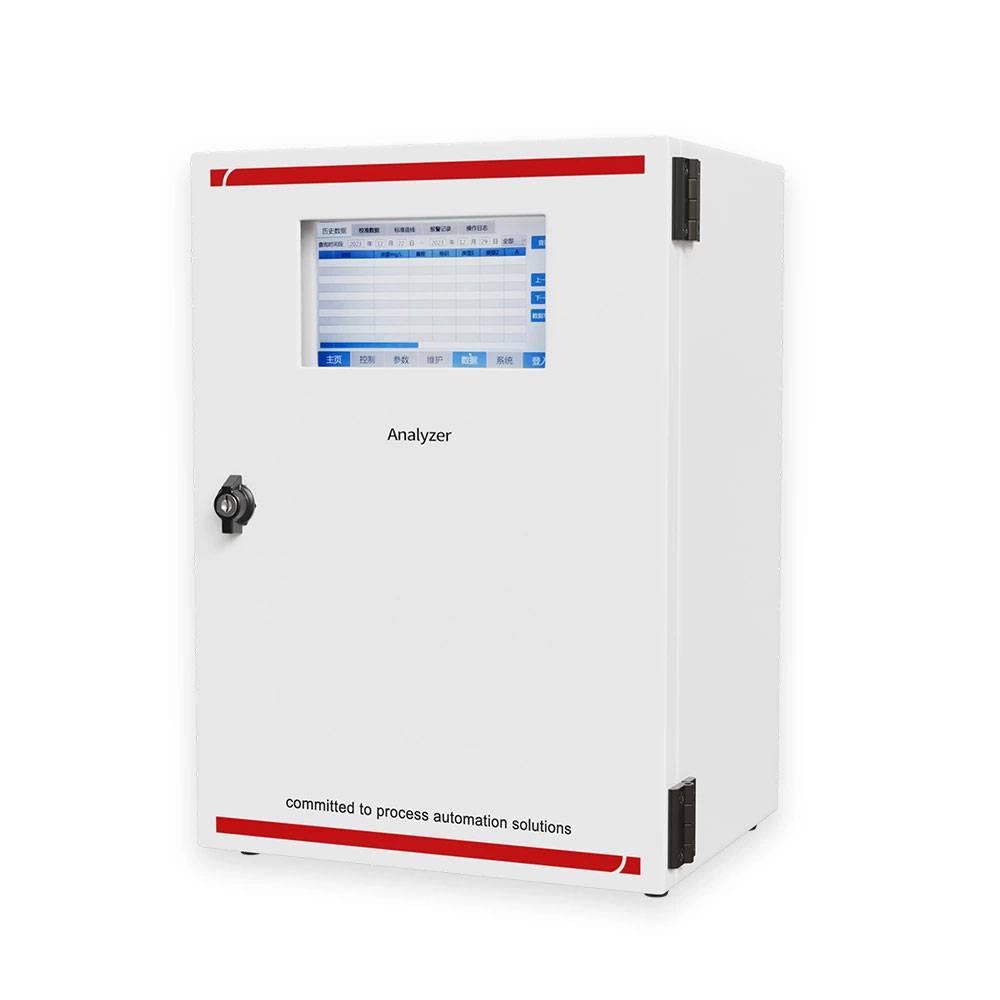

Total Phosphorous (TP) Analyzer Liquiline System

Small Reagent Consumption
Separation of Toxic Waste Water and Cleaning Waste Water
Plunger Pump Quantitative
Double Optical Path Detection
Lack of Liquid Detection and Alarm
Automatic Compensation of Turbidity
Automatic Range Switching
Key Parameter Upload
Friendly Human-computer Interaction
Support IPv4 Network

The total reagent consumption for a single measurement isless than 3mL, and the maintenance cost is low. Automatically identify insufficient sample and reagentssupply to avoid no reagent measurement. Both the amount of toxic waste water and cleaningwaste water in a single measurement is less than 15ml. This is a device that combines four measurement functions, COD analyzer, ammonia analyzer, total nitrogen analyzer, total phosphorous analyzer.

Specifications

Measuring range	(0～100 / 200 / 500 / 1000 / 2000) mg/L
Error	20% Range:±8%; 50% Range:±5%; 80% Range:±3%
Repeatability	≤3%
24h low concentration drift	±5 mg/L
24h high concentration drift	≤3%
Minimum Maintenance Period	≥168 h/time
Digital communication	RS232、RS485、RJ45
Analog communication	(4~20)mA input; (4~20)mA output
Power requirements	(220±22)VAC；(50±1)Hz
Ambient temperature	(5~40)℃
Size	300mm×420mm×240mm (W×H×D)
Weight	＜15 Kg

MEJ-TP

Total Phosphorous (TP)
Analyzer Liquiline System
