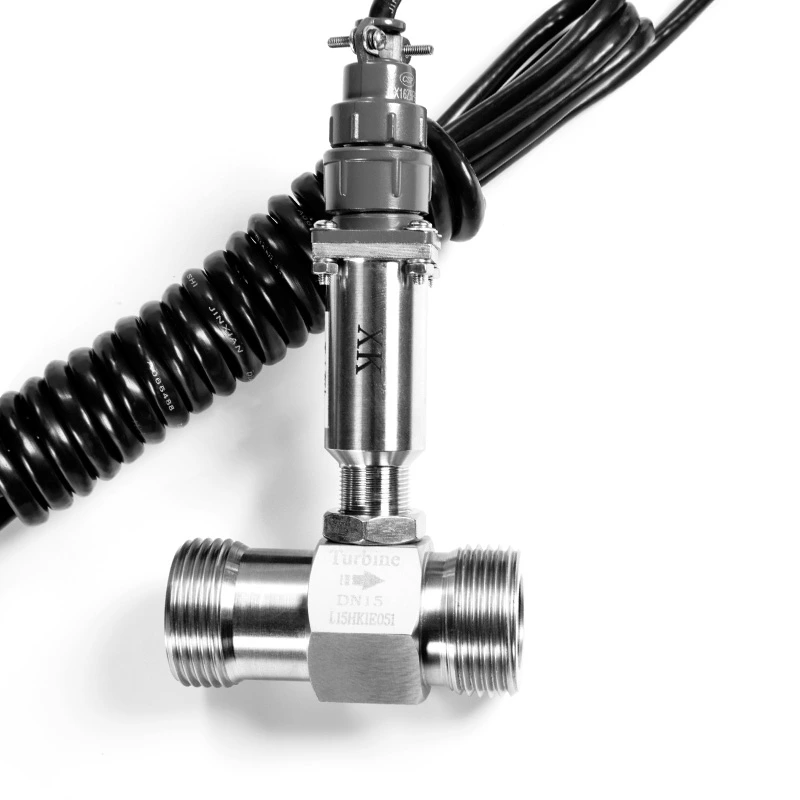

MEJ-LWGY Turbine flow sensor thread connection is a measuring device that combines the principle of turbine flow measurement with the threaded connection method. Through the threaded interface, it can be easily tightened and fixed with the pipeline, and the installation and disassembly are flexible.
Characteristics:
Pipe diameter: DN4~DN100
Accuracy: 0.2% 0.5% 1.0%
Power supply: 3.6V lithium battery; 12VDC; 24VDC
Ingress protection: IP65
The threaded connection sensor of the turbine flowmeter integrates efficient measurement and convenient installation, and its advantages are explained from different dimensions as follows:
Efficient installation and disassembly:
The connection with the pipeline can be completed by threading, without the need for professional tools and complex operations, and the installation time is short; It can also be quickly separated during disassembly and maintenance, greatly improving equipment maintenance efficiency.
Reliable sealing performance:
Threads combined with sealant, sealing rings and other materials can tightly fit the pipeline interface, effectively prevent fluid leakage, ensure stable and safe measurement process, and avoid medium loss affecting measurement accuracy.
Wide adaptability:
It can adapt to small-diameter pipelines of various diameters and is compatible with different specifications of fittings and fluid systems. Whether it is small pipelines in industrial production lines or experimental devices in laboratories, it can be flexibly applied.
Accurate and stable measurement:

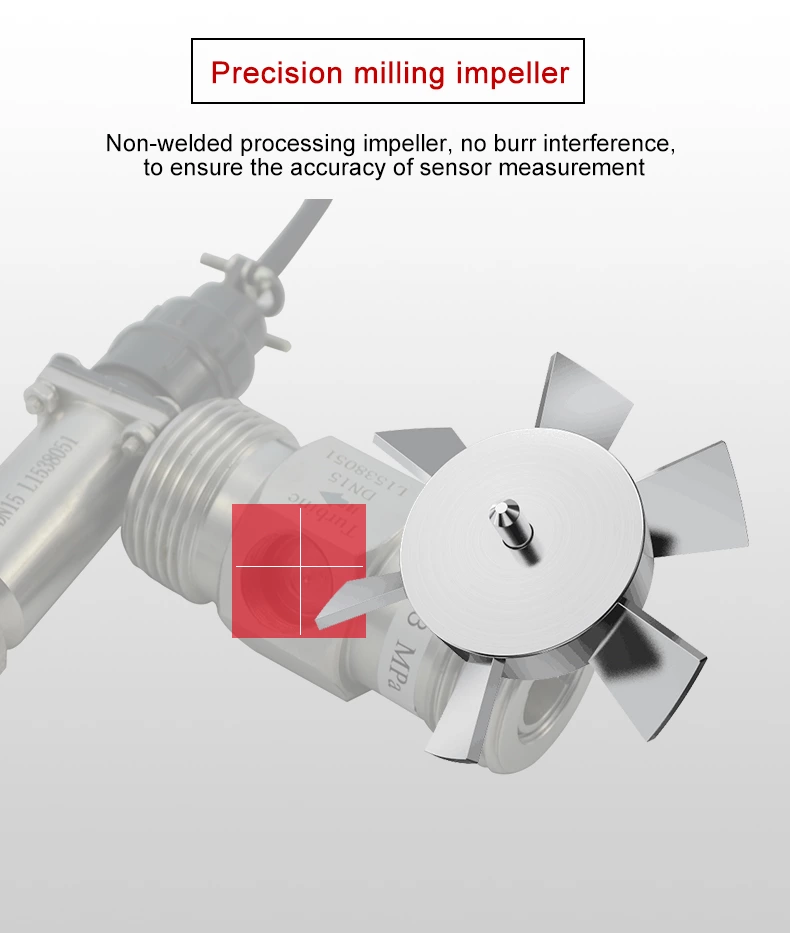

Equipped with high-precision turbine components and sensitive sensing elements, it responds quickly to changes in fluid flow velocity and can stably output accurate flow data even under complex operating conditions.
Small space occupation:
Compact structure, compared to flange connections and other methods, does not require excessive installation space, suitable for installation environments with limited space, and facilitates equipment layout and pipeline planning.
Outstanding cost-effectiveness:
The threaded connection structure is simple, the accessory cost is low, and the installation and maintenance process does not require additional auxiliary materials and complex processes, which can effectively control the overall usage cost.
| Product | Turbine flow sensor |
| Model | MEJ-LWGY |
| Diameter Nominal | DN4~DN100 |
| Nominal Pressure | 6.3 MPa |
| Accuracy | 0.5%R, 1.0%R |
| Medium Temperature | -20℃～＋120℃ |
| Power Supply | 3.6V lithium battery; 12 VDC; 24VDC |
| Output Signal | Pulse, 4-20mA, RS485 (WIth transmitter) |
| Ingress protection | IP65 |
